Documentation

Overview

Payment Widget is a low-code script that adds Apple Pay and Google Pay buttons directly to the merchant’s store – on product pages and/or in the cart – enabling one-tap checkout on supported devices without leaving your domain.

The problem we propose to solve

Long, multi-step checkouts and low-converting card forms hurt revenue. Reducing steps and keeping buyers on-page improves completion rates and trust.

About our solution

Embed payment widget where intention is highest (e.g., the product page) to skip the cart and complete payment in a secure native wallet sheet. No external redirects. Typical setup takes less than a day.

Key Benefits

On-page payments: buyers pay without leaving your site
Native wallets: Apple Pay & Google Pay out of the box
SCA/PSD2 ready: 3DS2 is handled automatically for card flows when required by your acquirer
Low-code integration: drop-in script, minimal config
Reduced PCI scope: card data never touches your servers
Flexible config & UI options: placement, amount, currency, callbacks, styles and more
Apple domain verification made easy: guided one-file upload
Fast Integration process: less than 1 day

Script connection

Adding file

On the merchant's page, in the <head> tag, it is necessary to add a link to the pay-buttons.js file.

The pay-buttons.js file must be located in the pay-buttons folder, on the same level with merchants folder (with payment pages).

Script declaration must contain id="pay-buttons".

<head>
  ...
  <script
    src="https://gateway-test.jcc.com.cy/payment/pay-buttons/pay-buttons.js"
    id="pay-buttons">
  </script>
  ...
</head>

Initialization

<script>
  document.addEventListener("DOMContentLoaded", function () {
    var widget = payButtonsWidget("containerId"); // where `containerId` is and id of the DOM-element where the buttons should be added

    widget.init({
      gatewayInfo: { // Information for Payment gateway
        token: "i29v9o5hkmuv2590l7661p9vcu", // Merchant's token
        amount: 852300, // Order amount in minor units
        returnUrl: "http\:\/\/yourwebsite.com\/success.html", // Target address after payment
        merchantLogin: "buttonApple",
      },

      applePay: { // Information for ApplePay session
        merchantId: "yourwebsite.com", // id of the merchant in Apple
      },

      googlePay: {
        environment: "TEST",
      },
    });
  });
</script>

Initialization parameters

Below is the complete list of the parameters used for the script initialization.

Required	Name	Type	Description
Optional	`cartItems`	Array of objects	Array of objects for description of the cart items. See nested parameters.
Optional	`appleButtonClass`	String	Class name that will be assigned to applePay button, in order to stylize the button separately or to address it. Default value: `pay-button_applepay`.
Mandatory	`applePay`	Object	Object containing information about Apple session. See nested parameters.
Optional	`debug`	Boolean	If `true` - debug mode is enabled, all service information will be shown under the button. Default value: `false`.
Mandatory	`gatewayInfo`	Object	Object containing information for the order in Payment gateway. See nested parameters.
Mandatory	`googlePay`	Object	Object containing information about Google Pay session. See nested parameters.

Parameters of cartItems block

Required	Name	Type	Description
Mandatory	`name`	String [1..255]	Name or the description of an item in any format.

Optional	`itemDetails`	Object	Object containing the parameters describing an item. The description of the nested elements is given below.

Mandatory	`quantity`	Object	Element describing the total of items of one `positionId` and its unit of measurement. The description of the nested elements is given below.

Optional	`itemAmount`	Integer [1..12]	The total cost of all instances of one `positionId` specified in minor denomination of the currency. `itemAmount` must be passed only if the `itemPrice` parameter has not been passed. Otherwise passing of `itemAmount` is not required. If both parameters `itemPrice` and `itemAmount` are passed in the request, then `itemAmount` shall be equal `itemPrice * quantity`, otherwise the request will return an error.

Optional	`itemPrice`	Integer [1..18]	Total cost of instance of one `positionId` specified in minor currency units.

Optional	`itemCurrency`	Integer [3]	ISO 4217 currency code. If the parameter is not specified, it is considered to be equal to the Order currency.

Mandatory	`itemCode`	String [1..100]	Number (identifier) of an item in the store system.

Example of cartItems block:

[
  {
    name: 'Ball pen',
    quantity: {
        value: 1,
        measure: "pcs"
    },
    itemAmount: (totalAmount * 100) / 2,
    itemCurrency: "978",
    itemCode: 'number_1'
  },
  {
    name: 'Cheese',
    quantity: {
        value: 1.4,
        measure: "kg"
    },
    itemAmount: (totalAmount * 100) / 2,
    itemCurrency: "978",
    itemCode: 'number_2'
  }
]

Parameters of gatewayInfo object

Required	Name	Type	Description
Mandatory	`token`	String	Token of the customer in administration console. It is necessary for customer identification.
Optional	`registerPreAuth`	Boolean	Registraion of two-stage payment. Default value: `false`.
Conditional	`orderNumber`	String [1..36]	Number of the order in the store system. Optional, if a setting to generate order number is enabled.
Optional	`amount`	Integer [0..12]	Payment amount in minor currency units (e.g. in cents).

Optional	`currency`	Integer [3]	ISO 4217 encoded currency key. If not specified, the default value is used.

Mandatory	`returnUrl`	String [1..512]	The address to which the user will be redirected if the payment is successful. The address must be specified in full including the protocol used (for example, `https://mybestmerchantreturnurl.com` instead of `mybestmerchantreturnurl.com`). Otherwise, the user will be redirected to the address of the following type `https://gateway-test.jcc.com.cy/payment/<merchant_address>`. The address must not be a relative path, i.e. it must not start with "." and "/". Otherwise, error 4 will be returned: "The return URL is invalid". For example: ../test.html, /test.html- invalid URLs.

Optional	`failUrl`	String [1..512]	The address to which the user is to be redirected in case of a failed payment. The address must be specified in full including the protocol used (for example, `https://mybestmerchantreturnurl.com` instead of `mybestmerchantreturnurl.com`). Otherwise, the user will be redirected to the address of the following type `https://gateway-test.jcc.com.cy/payment/<merchant_address>`. The address must not be a relative path, i.e. it must not start with "." and "/". Otherwise, error 4 will be returned: "The return URL is invalid". For example: ../test.html, /test.html- invalid URLs.

Optional	`description`	String [1..598]	Order description in any format. To enable sending this field to the processing system, contact the technical support service. It is not allowed to fill this parameter with personal data or payment data (card numbers, etc.). This requirement is due to the fact that the order description is not masked in Merchant Portal and log files.

Optional	`clientId`	String [0..255]	Customer number (ID) in the merchant's system — up to 255 characters. Used to implement the functionality of stored-credential transactions. Can be returned in the response if the merchant is allowed to store credentials. Specifying this parameter in stored-credential transactions is mandatory. Otherwise, a payment will be unsuccessful.

Optional	`sessionTimeoutSecs`	Integer [1..9]	Order lifetime in seconds. If the parameter is not specified, the value specified in the merchant settings or the default value (1200 seconds = 20 minutes) will be used. If the request contains `expirationDate`, the value of `sessionTimeoutSecs` is not taken into account.

Optional	`jsonParams`	Object	A set of additional free-form attributes, structure: `jsonParams={"param_1_name":"param_1_value",...,"param_n_name":"param_n_value"}` These fields can be passed to the Processing Center for further processing (additional setup is needed, please contact Support). Some pre-defined jsonParams attributes: `email` - customer's email. Attribute `jsonParams.email` is deprecated and soon will be deleted, you should use `email` parameter `phone` - customer's phone number. Attribute `jsonParams.phone` is deprecated and soon will be deleted, you should use `orderPayerData.mobilePhone` parameter `backToShopUrl` - adds checkout page button that will take a cardholder back to the assigned merchant web-site URL `backToShopName` - customizes default "Back to shop" button text label if used along with `backToShopUrl` `jccFirstInstallmentDate` - this parameter indicates that installment payments are possible for the order and specifies the first installment date. Further payments will be made automatically on the same date of each month during the payment period. The format is `DDMMYYYY`, where `DD` is in the range 01-28. `jccNbOfInstallments` - the number of installment months selected by the customer on the payment page.

Optional	`orderBundle`	Object	Object containing cart of items. The description of the nested elements is given below.

Optional	`merchantLogin`	String [1..255]	To register an order on behalf of another merchant, specify the merchant's API account login in this parameter. Can be used only if you have the permission to see the transactions of other merchants or if the specified merchant is your child merchant.

Optional	`merchantName`	String	merchantFullName in Payment gateway. Is necessary to display merchant's name in `payment request api` window.
Optional	`dynamicCallbackUrl`	String [1..512]	This parameter allows you to use the functionality of sending callback notifications dynamically. Here you can pass the address to which all "payment" callback notifications activated for the merchant will be sent. "Payment" notifications are callback notifications related to the following events: successful hold, payment declined by timeout, successful debit, refund, cancellation. At the same time, callback notifications activated for the merchant that are not related to payments (enabling/disabling a stored credential, storing a credential) will be sent to a static address for callbacks. Whether the parameter is mandatory or not depends on the merchant configuration on Payment Gateway side.

Optional	`ip`	String [1..39]	Buyer's IP address. IPv6 is supported in all requests. (up to 39 characters). If you use 3DS 2 authentication, we recommend passing a real IP address of the customer in this parameter. This increases conversion rates on the ACS side.

Optional	`expirationDate`	String [19]	Date and time of the order expiry. Format used: `yyyy-MM-ddTHH:mm:ss`. If this parameter is not passed in the request, `sessionTimeoutSecs` is used to define the expiry of the order.

Optional	`postAddress`	String [1..255]	Delivery address.

Optional	`feeInput`	Integer [1..8]	Fee amount in minimum currency units. Must be enabled by respective Merchant-level permission in the Gateway.

Conditional	`email`	String [1..40]	Email to be displayed on the payment page. Customer's email must be passed if client notification is configured for the merchant. Example: `client_mail@email.com`. The email will not be validated on registration. It will be later validated on payment.

Optional	`billingPayerData`	Object	A block with the client's registration data (address, postal code) necessary for passing the address verification within the AVS/AVV services. Mandatory if the feature is enabled for the merchant on Payment Gateway side. See nested parameters.
Optional	`shippingPayerData`	Object	Object containing customer delivery data. It is used for further 3DS authentication of the client. See nested parameters.
Optional	`preOrderPayerData`	Object	Object containing pre-order data. It is used for further 3DS authentication of the client. See nested parameters.
Optional	`orderPayerData`	Object	Object containing data about the order payer. It is used for further 3DS authentication of the client. See nested parameters.
Optional	`billingAndShippingAddressMatchIndicator`	String [1]	Indicator for matching the cardholder's billing address and shipping address. This parameter is used for further 3DS authentication of the customer. Possible values: `Y` - the cardholder's billing address and shipping address match; `N` - cardholder billing address and shipping address do not match.

Below are the parameters of the billingPayerData block (data about the client registration address).

Required	Name	Type	Description
Optional	`billingCity`	String [0..50]	The city registered on a specific card of the Issuing Bank.

Optional	`billingCountry`	String [0..50]	The country registered on a specific card of the Issuing Bank. Format: ISO 3166-1 (Alpha 2 / Alpha 3 / Number-3) or the country name. We recommend to pass a two/three-letter ISO country code.

Optional	`billingAddressLine1`	String [0..50]	The address registered on a specific card of the Issuing Bank. Line 1. Mandatory to be passed in order AVS verification works.

Optional	`billingAddressLine2`	String [0..50]	The address registered on a specific card of the Issuing Bank. Line 2.

Optional	`billingAddressLine3`	String [0..50]	The address registered on a specific card of the Issuing Bank. Line 3.

Optional	`billingPostalCode`	String [0..9]	Postal code registered on a specific card of the Issuing Bank. Mandatory to be passed in order AVS verification works.

Optional	`billingState`	String [0..50]	The state registered on a specific card of the Issuing Bank. Format: full ISO 3166-2 code, its part, or the state/region name. Can contain Latin characters only. We recommend to pass a two-letter ISO state code.
Optional	`payerAccount`	String [1..32]	Payer's account number.

Optional	`payerLastName`	String [1..64]	Payer's last name.

Optional	`payerFirstName`	String [1..35]	Payer's first name.

Optional	`payerMiddleName`	String [1..35]	Payer's middle name.

Optional	`payerCombinedName`	String [1..99]	Payer's full name.

Optional	`payerIdType`	String [1..8]	Type of the payer's identifying document provided. Allowed values: `IDTP1` - Passport `IDTP2` - Driving license `IDTP3` - Social card `IDTP4` - Citizen ID card `IDTP5` - Certificate of Business `IDTP6` - Refugee certificate `IDTP7` - Residence permit `IDTP8` - Foreign passport `IDTP9` - Official passport `IDTP10` - Temporary passport `IDTP11` - Sailor's passport

Optional	`payerIdNumber`	String [1..99]	Number of the payer's identifying document provided.

Optional	`payerBirthday`	String [1..20]	Payer's birth date in the YYYYMMDD format.

Description of parameters in shippingPayerData object:

Required	Name	Type	Description
Optional	`shippingCity`	String [1..50]	The customer's city (from the delivery address)
Optional	`shippingCountry`	String [1..50]	The customer's country
Optional	`shippingAddressLine1`	String [1..50]	The customer's primary address (from the shipping address)
Optional	`shippingAddressLine2`	String [1..50]	The customer's primary address (from the shipping address)
Optional	`shippingAddressLine3`	String [1..50]	The customer's primary address (from the shipping address)
Optional	`shippingPostalCode`	String [1..16]	The customer's zip code for delivery
Optional	`shippingState`	String [1..50]	Customer's state/region (from delivery address)
Optional	`shippingMethodIndicator`	Integer [2]	Shipping Method Indicator. Possible values: `01` - delivery to the cardholder's billing address `02` - delivery to another address verified by Merchant `03` - delivery to an address other than the cardholder's primary (settlement) address `04` - shipment to the store/self-collection (the store address should be specified in the relevant delivery parameters) `05` - Digital distribution (includes online services and e-gift cards) `06` - travel and event tickets that are not deliverable `07` - Other (e.g. games, non-deliverable digital goods, digital subscriptions, etc.)
Optional	`deliveryTimeframe`	Integer [2]	Product delivery timeframe. Possible values: `01` - digital distribution `02` - same-day delivery `03` - overnight delivery `04` - delivery within 2 days after payment and later
Optional	`deliveryEmail`	String [1..254]	Target email address for delivery of digital distribution. Note that it is preferrable to pass the email in a separate `email` parameter of the request. The `deliveryEmail` parameter specified in this block is only used to fill `MerchantRiskIndicator` during 3DS authorization.

Description of parameters in preOrderPayerData object:

Required	Name	Type	Description
Optional	`preOrderDate`	String [10]	Expected date when delivery will be available (for pre-ordered purchases), in the format YYYYYYMMDD.
Optional	`preOrderPurchaseInd`	Integer [2]	Indicator of a customer placing an order for available or future delivery. Possible values: `01` - delivery available; `02` - future delivery
Optional	`reorderItemsInd`	Integer [2]	An indicator that the customer is rebooking a previously paid delivery as part of a new order. Possible values: `01` - order placed for the first time; `02` - repeated order

Description of parameters in orderPayerData object:

Required	Name	Type	Description
Optional	`homePhone`	String [7..15]	Customer's phone number. It is always necessary to specify the country code, but you can specify or omit the `+` sign or `00` at the beginning. The number must be 7 to 15 digits long. Thus, the following options are valid: `+35799988877`; `0035799988877`; `35799988877.`
Optional	`workPhone`	String [7..15]	Customer's phone number. It is always necessary to specify the country code, but you can specify or omit the `+` sign or `00` at the beginning. The number must be 7 to 15 digits long. Thus, the following options are valid: `+35799988877`; `0035799988877`; `35799988877.`
Conditional	`mobilePhone`	String [7..15]	Customer's phone number. It is always necessary to specify the country code, but you can specify or omit the `+` sign or `00` at the beginning. The number must be 7 to 15 digits long. Thus, the following options are valid: `+35799988877`; `0035799988877`; `35799988877.` For payment by VISA with 3DS authorization, it is necessary to specify either phone or email of the cardholder. If you have a setting to display phone number on the payment page and have specified an invalid number, the customer will have a possibility to correct it on the payment page.

Description of parameters in orderBundle object:

Required	Name	Type	Description
Optional	`orderCreationDate`	String [19]	Order creation date in the following format: `YYYY-MM-DDTHH:MM:SS`.

Optional	`customerDetails`	Object	Block containing customer attributes. The description of the tag attributes is given below.
Mandatory	`cartItems`	Object	Object containing cart items attributes. The description of nested elements is given below.

Description of parameters in customerDetails object:

Required	Name	Type	Description

Optional	`contact`	String [0..40]	Customer's preferred way of communication.

Optional	`fullName`	String [1..100]	Payer's full name.
Optional	`passport`	String [1..100]	Customer's passport serial number in the following format: `2222888888`.

Optional	`deliveryInfo`	Object	Object containing delivery address attributes. The description of the nested elements is given below.

Description of parameters in deliveryInfo object.

Required	Name	Type	Description
Optional	`deliveryType`	String [1..20]	Delivery method.

Mandatory	`country`	String [2]	Two letter code of the country of delivery.

Mandatory	`city`	String [0..40]	City of destination.

Mandatory	`postAddress`	String [1..255]	Delivery address.

Description of parameters in cartItems object.

Required	Name	Type	Description
Mandatory	`items`	Object	An element of the array containing cart item attributes. The description of the nested elements is given below.

Description of parameters in items object.

Required	Name	Type	Description
Mandatory	`positionId`	Integer [1..12]	Unique product identifier in the cart.

Mandatory	`name`	String [1..255]	Name or the description of an item in any format.

Optional	`itemDetails`	Object	Object containing the parameters describing an item. The description of the nested elements is given below.

Mandatory	`quantity`	Object	Element describing the total of items of one `positionId` and its unit of measurement. The description of the nested elements is given below.

Optional	`itemAmount`	Integer [1..12]	The total cost of all instances of one `positionId` specified in minor denomination of the currency. `itemAmount` must be passed only if the `itemPrice` parameter has not been passed. Otherwise passing of `itemAmount` is not required. If both parameters `itemPrice` and `itemAmount` are passed in the request, then `itemAmount` shall be equal `itemPrice * quantity`, otherwise the request will return an error.

Optional	`itemPrice`	Integer [1..18]	Total cost of instance of one `positionId` specified in minor currency units.

Optional	`itemCurrency`	Integer [3]	ISO 4217 currency code. If the parameter is not specified, it is considered to be equal to the Order currency.

Optional	`itemCode`	String [1..100]	Number (identifier) of an item in the store system.

Description of parameters in quantity object.

Required	Name	Type	Description
Mandatory	`value`	Number [1..18]	Number of items in one `positionId`. Use a decimal point as a separator in fractions. Maximal number of decimal places is 3.

Mandatory	`measure`	String [1..20]	The unit of measurement for the quantity of item instances.

Description of parameters in itemDetails object.

Required	Name	Type	Description
Optional	`itemDetailsParams`	Object	Parameter describing additional information regarding a line item. The description of the nested elements is given below.

Description of parameters in itemDetailsParams object.

Required	Name	Type	Description
Mandatory	`value`	String [1..2000]	Additional item info.

Mandatory	`name`	String [1..255]	Name of the parameter describing the details of an item

Parameters of applePay block

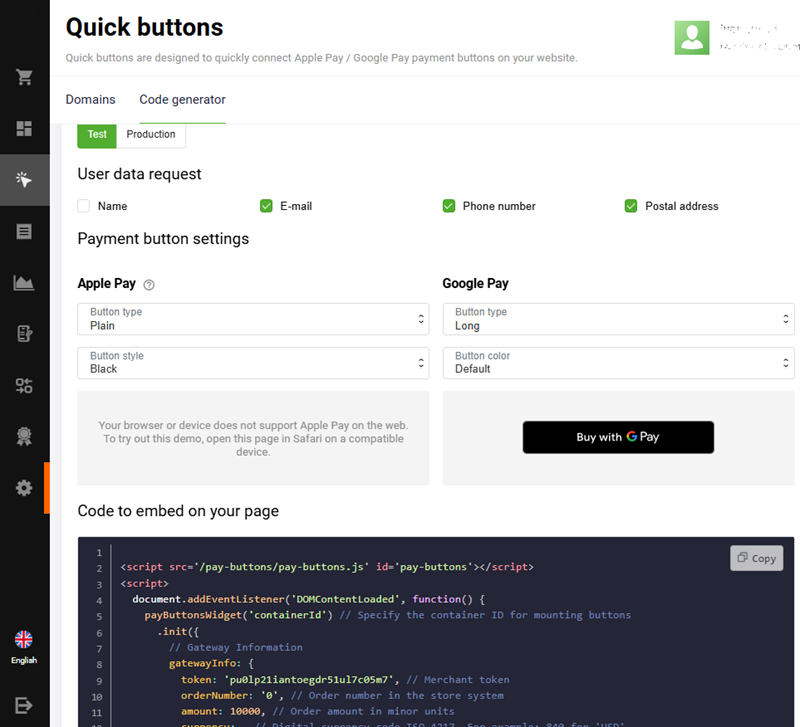

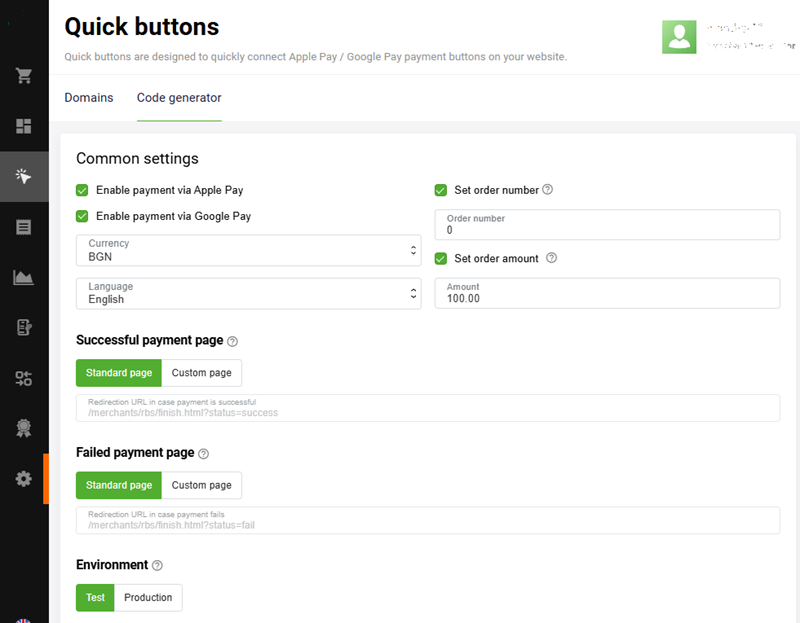

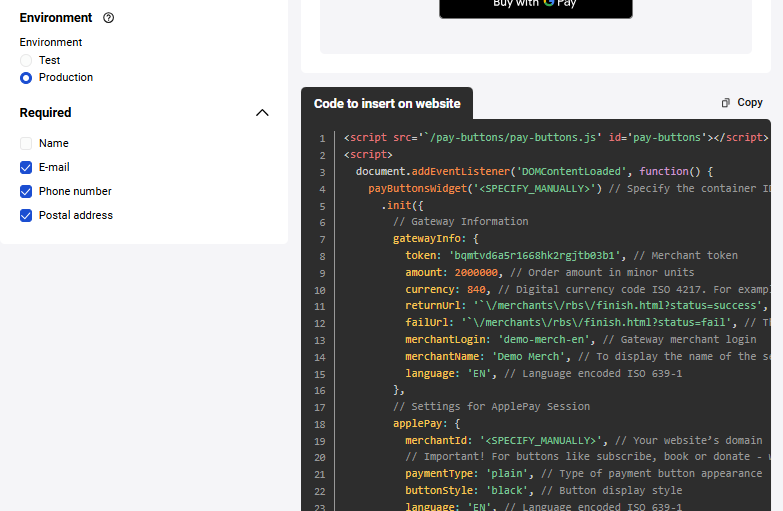

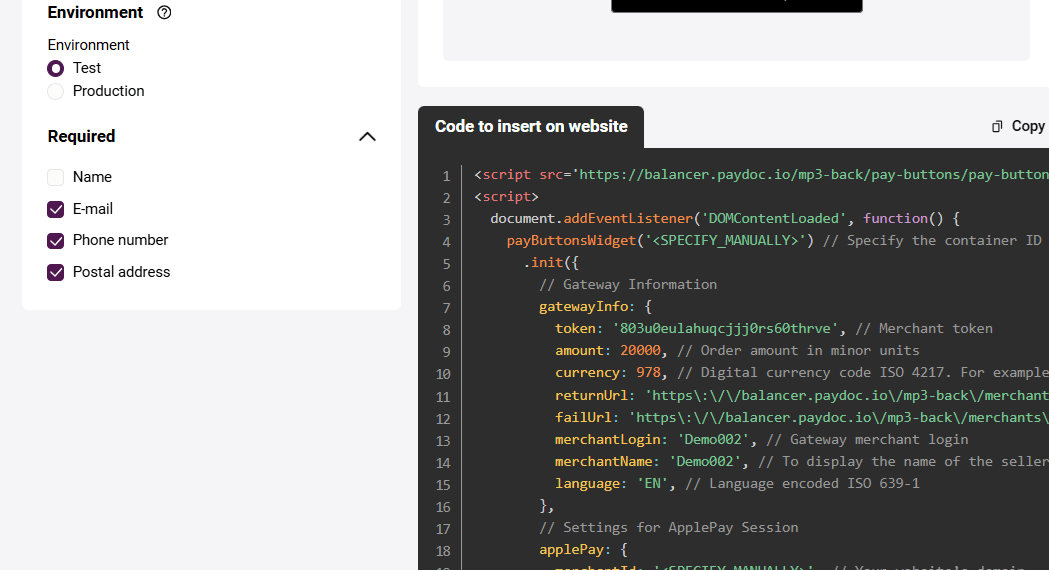

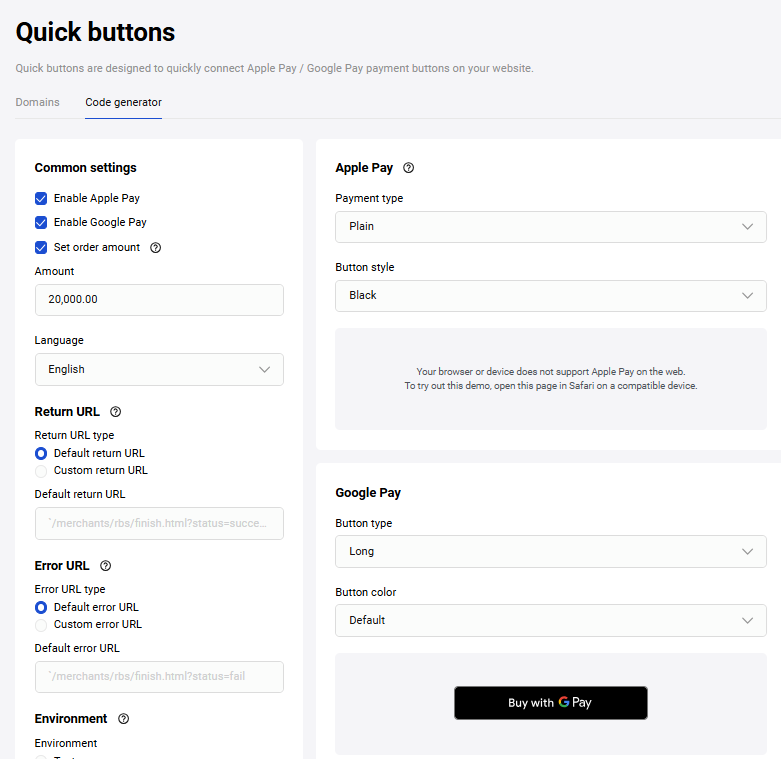

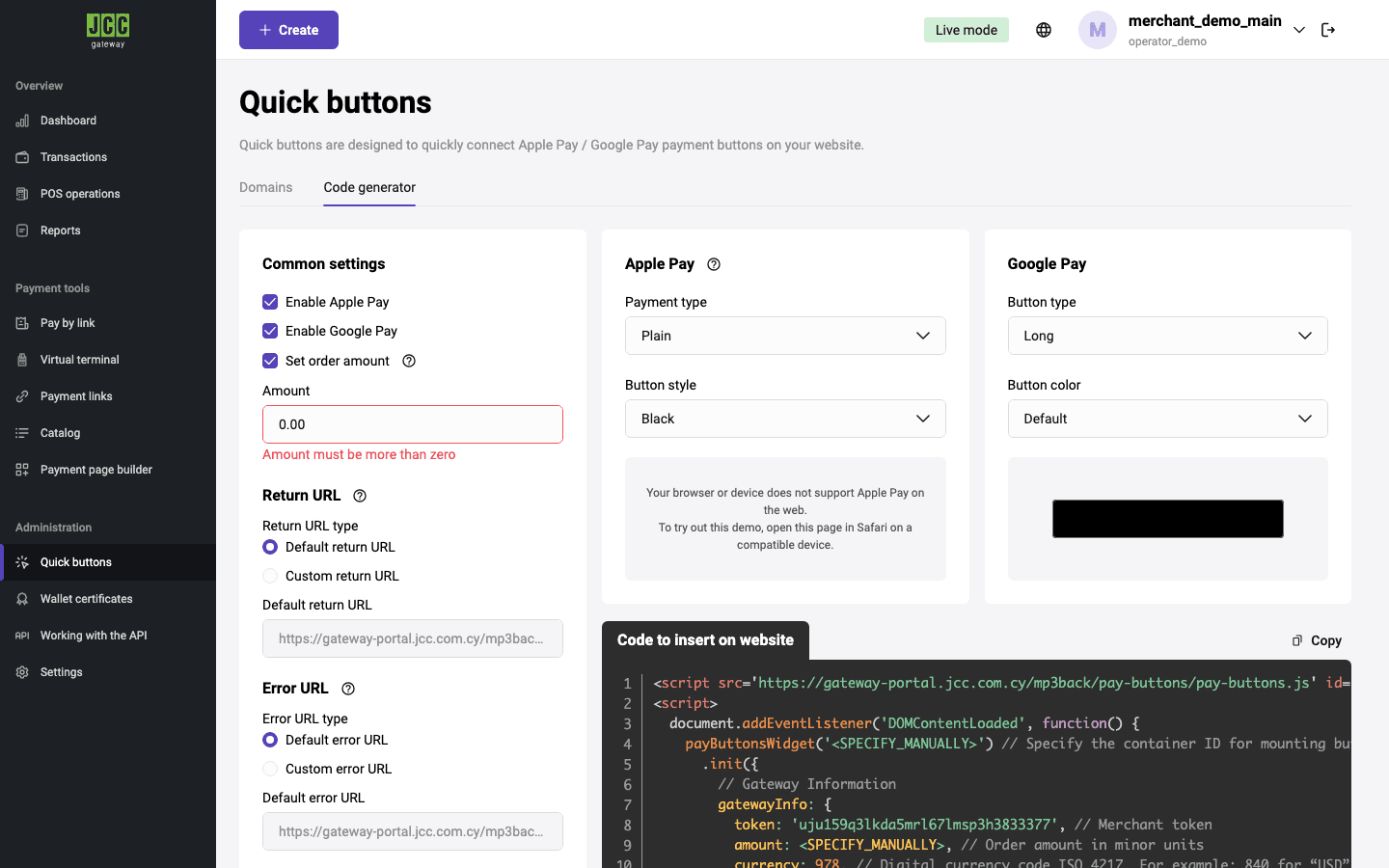

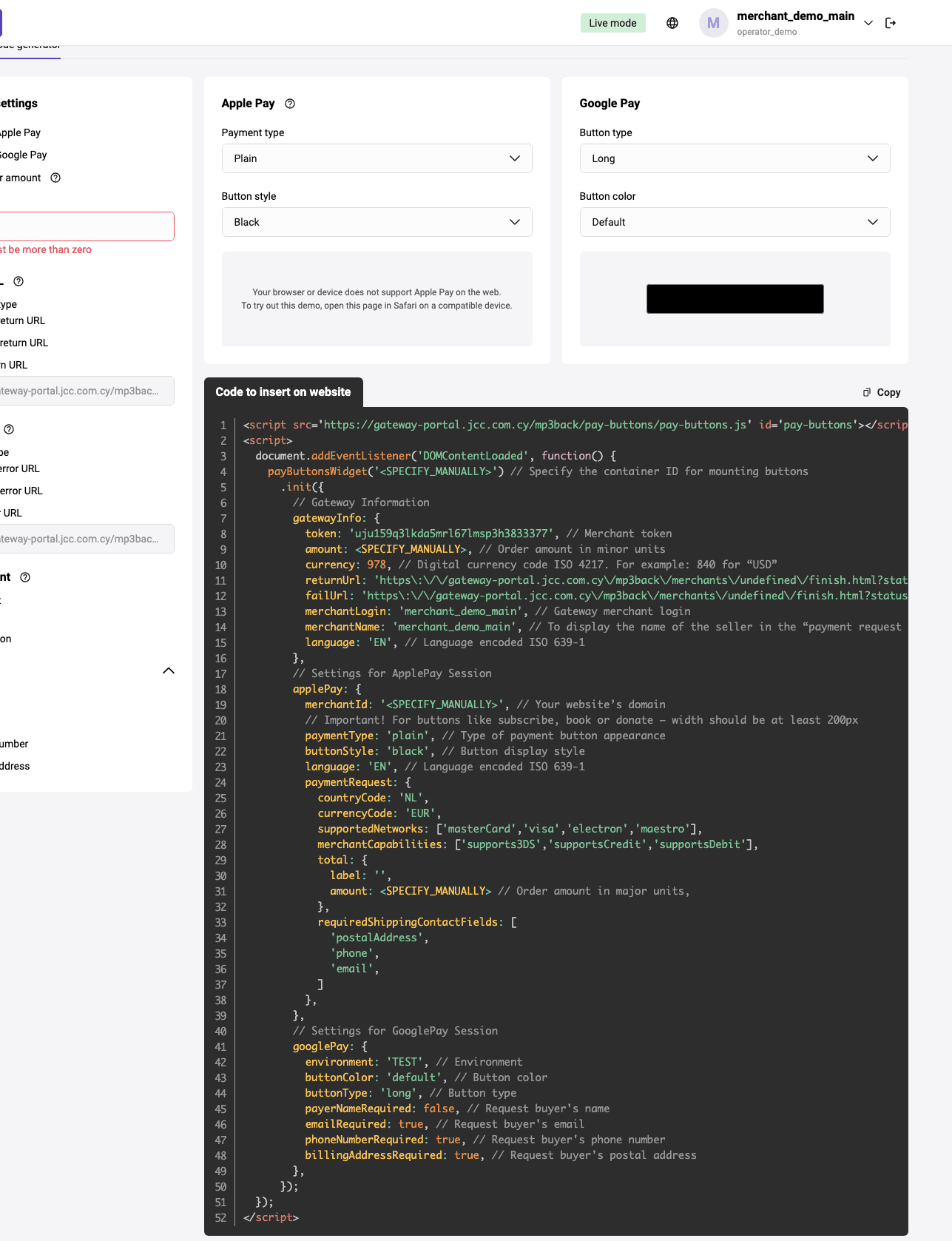

See more details in the button constructor.

Required	Name	Type	Description
Optional	`buttonStyle`	String	Button display style. Allowed values: `black`, `white`, `white-outline`. Default value: `black`.
Optional	`paymentRequest`	String	Description of Apple Pay payment session. The detailed description can be found in the official documentation. See the example below.
Optional	`paymentType`	String	Type of the payment button appearance. Allowed values: `plain`, `buy`, `donate`, `set-up`, `book`, `subscribe`. Default value: `buy`. For `donate`, `book`, `subscribe` types, the button width must be at least 200 px.
Mandatory	`merchantId`	String	`merchantId` in Apple, for example, `website.com`. This site will be also used as `label` in Apple Pay window. As it is limited by length, it is easier to display site domain.
Mandatory	`language`	String [2]	ISO 639-1 encoded key of the button language.

Example of paymentRequest:

{
  countryCode: 'BG',
  currencyCode: 'BGN',
  supportedNetworks: [
    'masterCard',
    'visa',
    'electron',
    'maestro'
  ],
  merchantCapabilities: [
    'supports3DS',
    'supportsCredit',
    'supportsDebit'
  ],
  total: {
    label: '',
    amount: 1.00 // major units
  },
  requiredShippingContactFields: [
    'postalAddress',
    'name',
    'phone',
    'email'
  ]
}

Parameters of googlePay block

Required	Name	Type	Description
Mandatory	`environment`	String	Environment. If not specified, the GPay button is not displayed. Allowed values: `PRODUCTION` - used to show valid payment ways, if an active Google merchant ID is specified for the domain. Is used for production only. `TEST` - test payment ways intended for testing (default value).
Optional	`emailRequired`	Boolean	Whether email should be asked during payment via PaymentRequest API. Default value: `true`.
Optional	`phoneNumberRequired`	Boolean	Whether phone number should be asked during payment via PaymentRequest API. Default value: `true`.
Optional	`billingAddressRequired`	Boolean	Whether billing address should be asked during payment via PaymentRequest API. Default value: `true`.
Optional	`shippingAddressRequired`	Boolean	Whether shipping address should be asked during payment via PaymentRequest API. Default value: `false`.
Optional	`payerNameRequired`	Boolean	Whether payer name should be asked during payment via PaymentRequest API. Default value: `false`.
Conditional	`allowedCountryCodes`	Array of String	List of country codes where shipping is available, in the ISO 3166-1 alpha-2 format. Mandatory, if `shippingAddressRequired = true`.
Optional	`buttonColor`	String	Google Pay button color. Allowed values: `default` - selected value by default. Currently, `black` is used. `black` - black button for placing on a white or another light background. `white` - white button for placing on a colored background. Default value: `default`.
Optional	`buttonType`	String	Type of the label on the button. Allowed values: `long` - button with the text "Pay via Google Pay" (by default). If one of available languages is selected in the browser settings, a localized version of the button will be displayed. `short` - Google Pay payment button without text. Default value: `short`.

Code generator

You can also quickly generate the code of Payment Widget script via Merchant Portal. To do so, go to Quick buttons -> Code generator tab in your Personal Area.

This page contains a constructor that looks like as follows:

The tab has the following sections that contain parameters for the script initialization:

Common settings - specify the common information for order generation in Payment Gateway:
- Enable payments via Apple Pay and/or Google Pay payments,
- Order number,
- Amount (mandatory),
- Currency (select from the list),
- Language (select from the list),
- Environment where you want to use the script (Test or Production).
- Succesful payment page and Failed payment page (specify URL or select standard URL).
User data request - specify the data that should be required during payment via PaymentRequest API for Google Pay. Select corresponding check boxes: Name, Email, Phone number, Postal address.
Payment button settings - specify button type and style for Apple Pay and Google Pay buttons. You can see the buttons preview in this section.
Code to embed on your page - this section displays preview of the script initialization code according to the specified parameters. This code should be embedded on your page.

Supporting by browsers

Environment / Browsers	Apple Pay	Google Pay
iOS / iPadOS — Safari	Yes	Yes (web checkout)
iOS / iPadOS — Chrome / Edge / Firefox	Yes (iOS 16+)	Yes (web checkout)
macOS — Safari	Yes	Yes
macOS — Chrome / Edge / Firefox	Yes, via QR (iOS 18+)	Yes
Windows / Linux / ChromeOS — Chrome / Edge / Firefox	Yes, via QR (iOS 18+)	Yes
Android — Chrome / Edge / Firefox	Yes, via QR (iOS 18+)	Yes

Testing and deployment

Test environment (UAT)

Connect the script with https://gateway-test.jcc.com.cy/payment/ address.

<script
  src="https://gateway-test.jcc.com.cy/payment/pay-buttons/pay-buttons.js"
  id="pay-buttons">
</script>

Production environment (PROD)
